RSLinx lite

Interface with Rockwell PLC Programs

1. Connect PLC with your PC by interface cable.

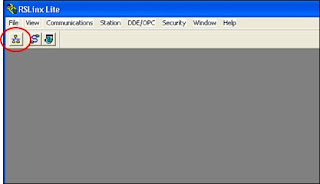

2. Open RSLinx software and select RS Who like this Pic.

PLC Programs

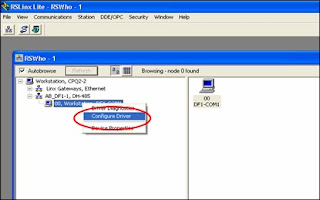

3. Set PLC driver by right clink at Workstation icon and select Configure Driver.

PLC Programs

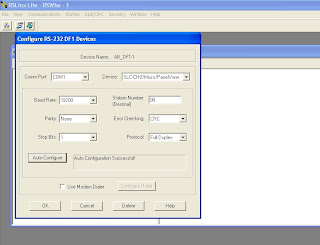

4. Select auto configure icon. If connection test is OK, This page wil show Auto Configuration Successful.

PLC Programs

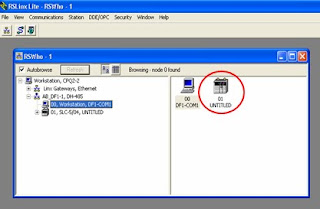

5. After finshed to configure, you can see PLC icon on right display. If didn't shown, you must Configure driver again.

PLC Programs
